Concepts & Plotting: Blocks on Belts

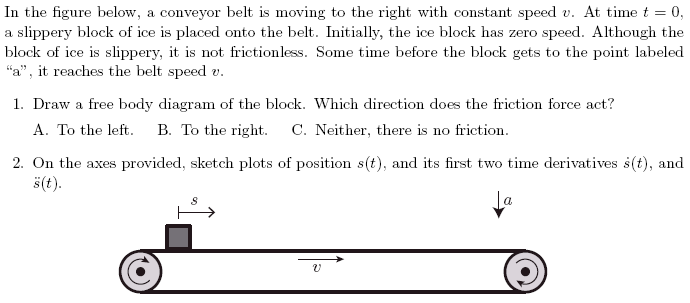

Basic Block on Belt Problem

PDF version here (has plotting axes).

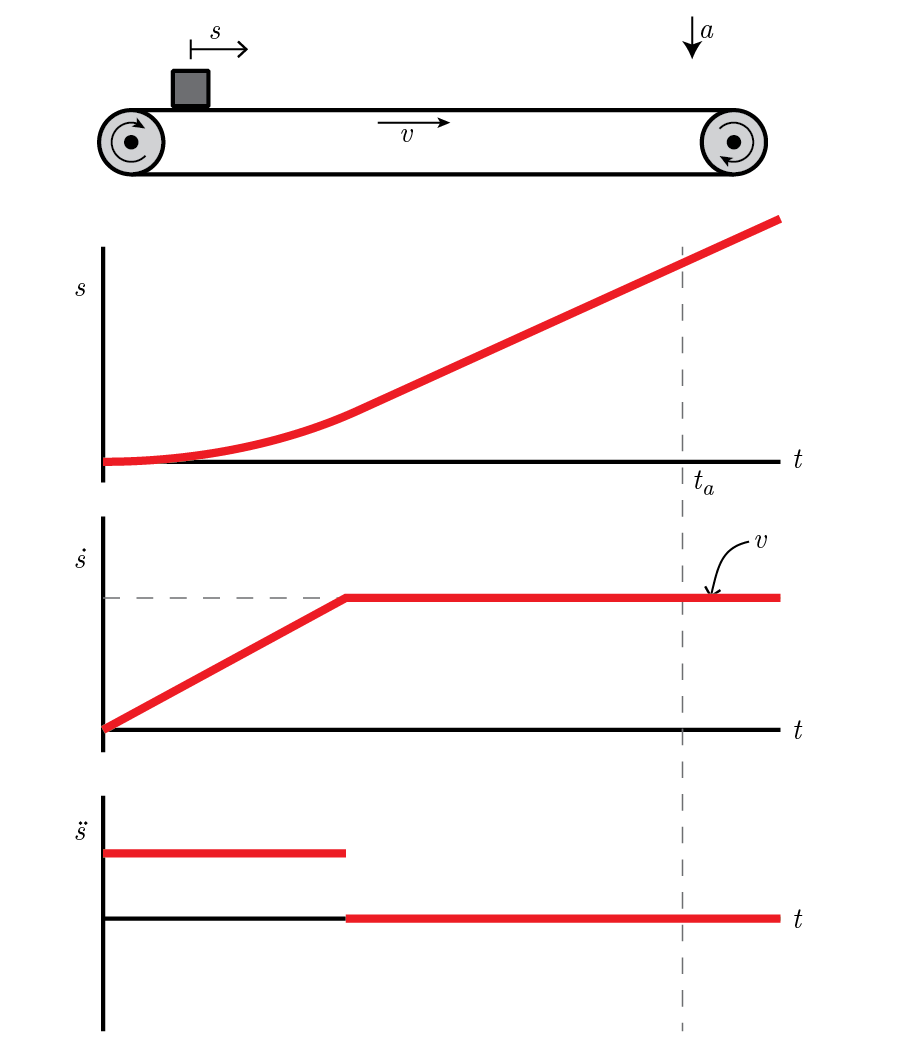

Answers: Question 1, Question 2

Full explanations are provided in the video below.

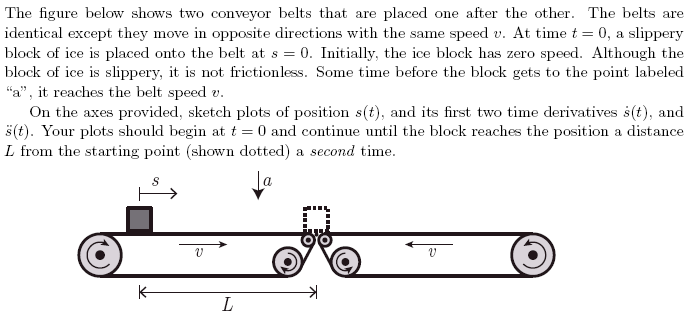

Belts in Series

PDF version here (has plotting axes).

Answer (coming)

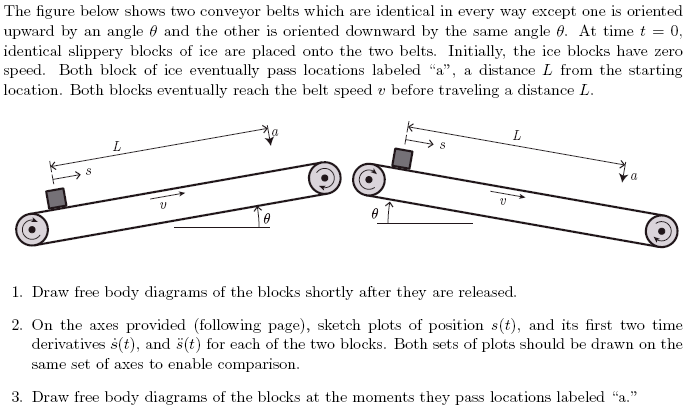

Inclined Belts

PDF version here (has plotting axes).

Answers (coming).
