Courses » Engineering Dynamics Notes & Problems » Elements of Newton's 2nd Law » Concepts & Plotting: Slope Slider

Concepts & Plotting: Slope Slider

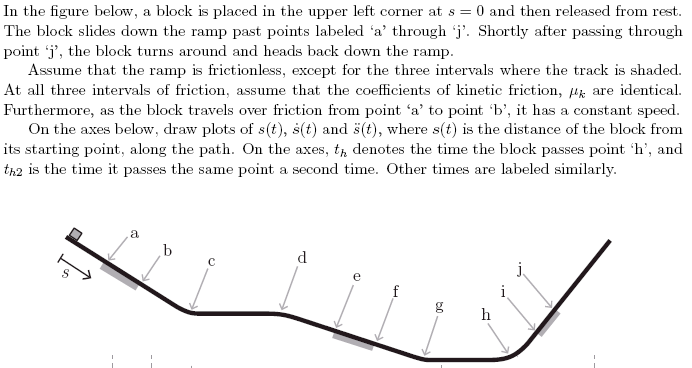

First Example

PDF version here (has plotting axes).

Link to first slope slider problem

Answers.

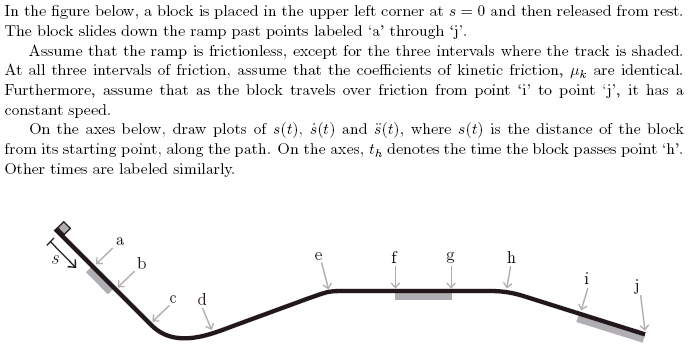

Second Example

PDF Version here (has plotting axes).

Link to second slope slider problem.

Answers.

 Posted by Brianno Coller
