1-D Problems with Friction

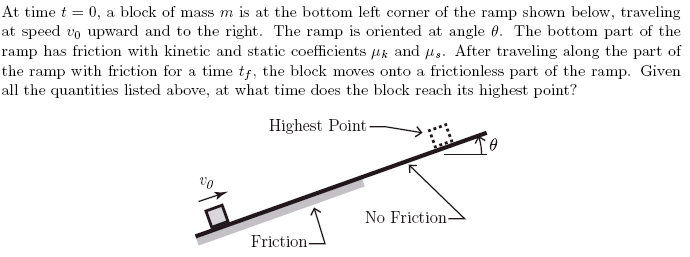

Simple Problem with Friction

Click here for PDF version.

link to pdf version of problem



Click here for a written solution. A video solution is provided below:

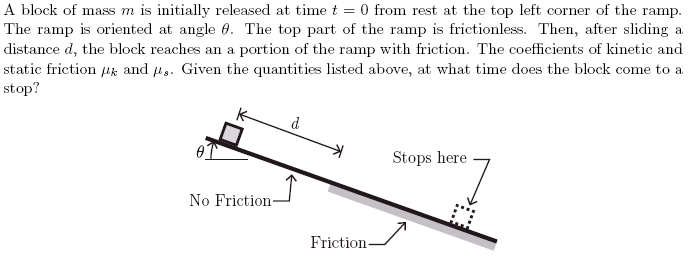

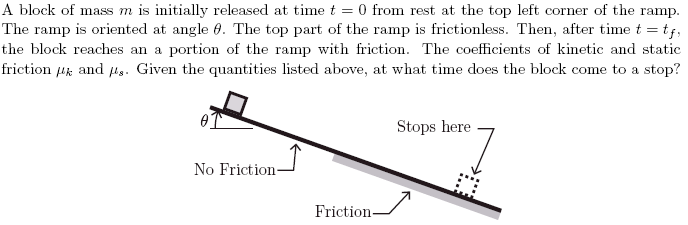

Simple Problem with Friction (slightly different)

Here is a version of the previous problem with one small change in the boundary condition. This one small change in the boundary condition makes you think of the problem differently. It’s worth looking at.  PDF version is available by clicking here.

link to second practice problem on page

Click here for solution.

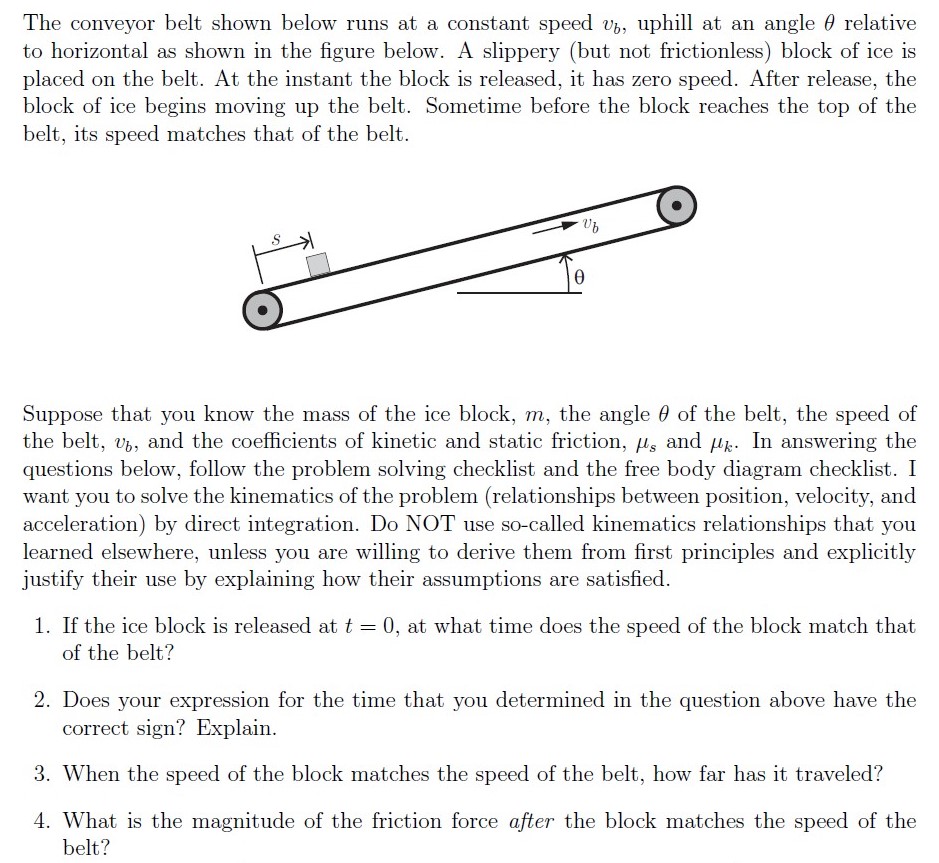

Yet Another Version of the Simple Friction Problem

PDF copy is available by clicking here.

link to PDF copy of third example problem on this page

Click here for solution. A video form of the solution, where all the steps are explained, is provided below.

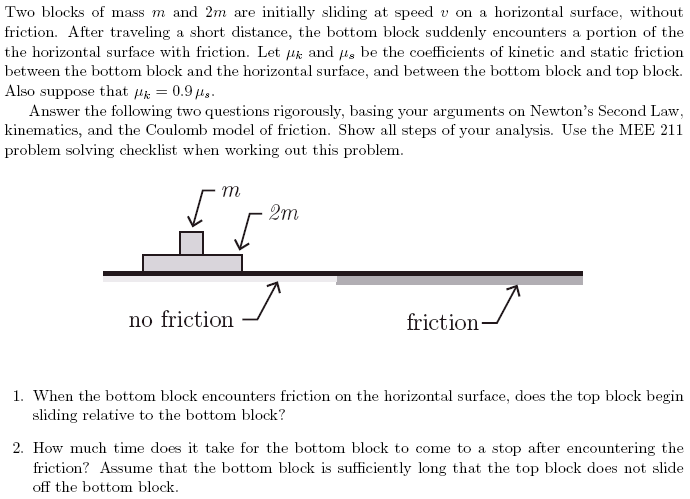

Stack of Blocks

Click here for PDF version.

link to pdf version of first stack of blocks problem

Click here for solution.

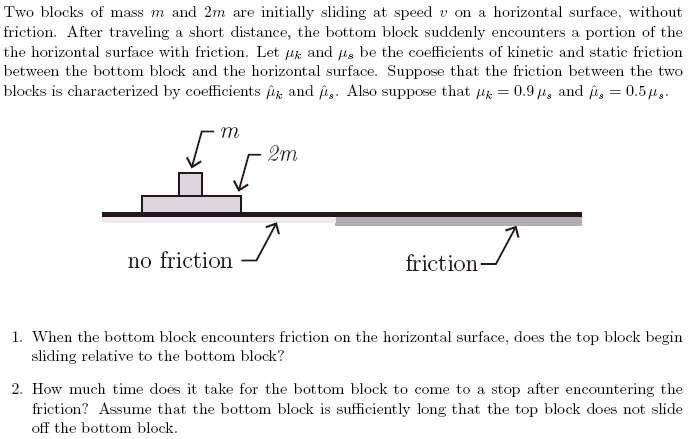

Another Stack of Blocks

Click here for PDF version of problem.

Link to a second stack of blocks problem

Solution not available yet.
